Professional Factory for Chaoda 4*8 Ft Wood Router Cnc Machinery Osb Board Working Cnc

Short Description:

  • Min.Order Quantity: 1 Set
  • Port: Qingdao port or any other Chinese ports
  • Payment Terms: L/C, T/T, Alibaba Trade Assurance, PayPal, Western Union, MoneyGram
  • Model No. : BT-800DFP
  • FOB Qingdao Price: USD650-USD700 negotiable according to order quantity
  • Gas Output: 200L/hour
  • Power Supply: Single Phase AC220V+/-10%, or AC110V+/-10%, or DC 12V / 24V
  • Certificate: CE, ISO9001, ISO14001
  • Lead Time: Ready in stock throughout the year
  • Origin: Qingdao, China
  • H.S. Code: 84682000.90
  • Application: Welding, Carbon Cleaning For Car
  • Product Detail

    Product Tags

    As for aggressive rates, we believe that you will be searching far and wide for anything that can beat us. We can easily state with absolute certainty that for such good quality at such charges we are the lowest around for Professional Factory for Chaoda 4*8 Ft Wood Router Cnc Machinery Osb Board Working Cnc, We welcome new and previous shoppers from all walks of existence to contact us for long term organization relationships and acquiring mutual success!
    As for aggressive rates, we believe that you will be searching far and wide for anything that can beat us. We can easily state with absolute certainty that for such good quality at such charges we are the lowest around for 1325 Cnc Router, 4*8 Ft Wood Router Cnc Machinery Osb Board Working Cnc, Chaoda 4*8 Ft Wood Router Cnc Machinery, We’ve been increasingly expanding our international market share based on quality products, excellent service, reasonable price and timely delivery. Make sure you contact us at any time for more information.
    Aliexpress purchasing link.

    Product Description

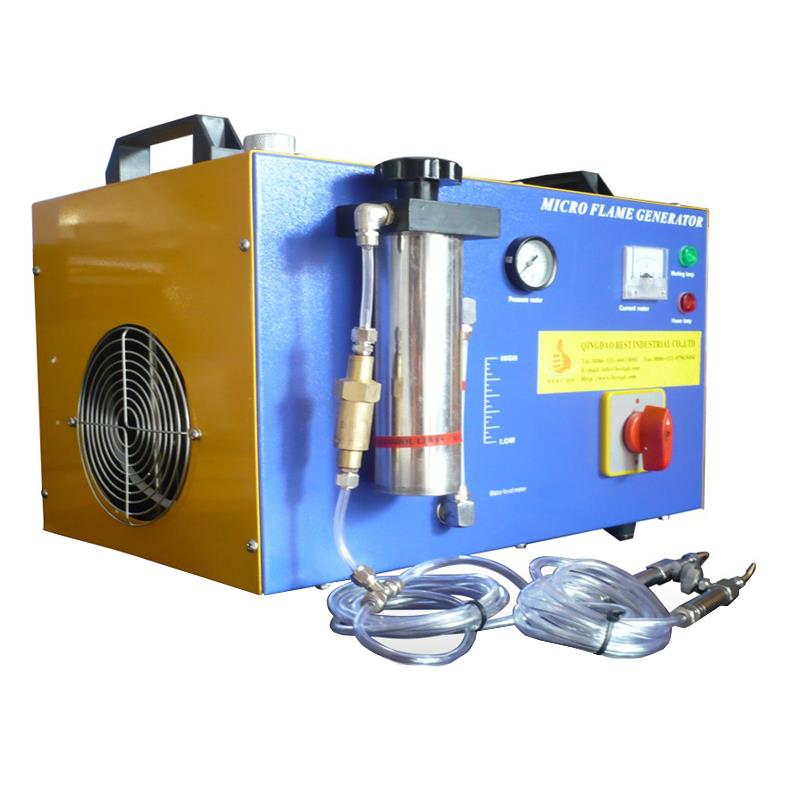

    BT-800DFP(2) BT-800DFP(1)

    • Specification Specification

    Model No. BT-800DFP
    Power Supply Single Phase AC220V+/-10% or AC110V+/-10%, or DC12V / 24V
    Machine Power 800W
    Gas Generation 200L/hour
    Water Consumption 40ml/hour
    Proportion of KOH:Water 300g: 1500ml
    Flame Torch Supporting  2sets working together
    Packing Dimension (LxWxH) 53x43x40cm
    Gross Weight (including wooden crate) 35kg
    Certificate CE, ISO9001, ISO14001

    Production Working Principle

    Multi-function oxy-hydrogen welding machine takes water as main consumable material. Water mixed with potassium hydroxide (KOH) is electrolytic to generate the mixed Hydrogen and Oxygen gas.

    Hydrogen as fuel, oxygen as combustion-supporting.

    Flame temperature is up to 2800℃。The product after gas combustion is water vapor, non-toxic and does not pollute the environment.

     ● Main Application

    It can be used in welding metal or alloy; soldering denture or maintaining dental equipment; soldering metal wires, especially enamelled wires in motors; mending and soldering eye-glasses frame; fusing LED wafers; making and mending gold jewelry, platinum jewelry and other jewelry; processing quartz glass; sealing small quartz glass bottles; processing accessories and decorations; polishing acrylic or organic glass sheet, letters and so on.

    Since it powerful gas output, it is also used for carbon cleaning for cars.

    Brass tube welded by the machine.

    welding picture

    welding finish

    ● Packing List

    Item Name Q’ty
    BT-800DFP HHO Generator 1set
    High grade Flame Torch 2pcs
    Gas Hose 2pcs
    Power Cord (with European plug, or American plug, or British plug, or Chinese plug) 1pc
    Funnel 1pc
    T-junction 1pc
    Extra Brass Nozzles 2pcs
    Flashback arrestor 1pc
    Rubber Sealing Ring 1pc
    Potassium Hydroxide (KOH) 500g/bottle 1bottle


    Lead Time

    Since it is regular model, ready in stock throughout the year, and will be shipped as soon as payment is received.


    12 months dating from you receiving the machine.

    During warranty period, if some part is broken due to manufacturing defect, we will send you new part to replace freely.

    Payment Terms

    L/C, T/T, Western Union, MoneyGram, PayPal, Alibaba Trade Assurance, Credit Card through aliexpress etc.

    Packing Information

    1 set / free-fumigation wooden crate.

    Carton dimension (L*W*H): 53*43*40cm / 0.09CBM, 35kg

    Suggested Shipping Mode

    <10 sets, we suggest shipping by express courier to door, e.g. FedEx, UPS, DHL etc.

    >=10 sets, we suggest shipping by sea or by air to port.

    • FAQ (Frequently Asked Questions)

    Q. What should we prepare for the machine?

    A: 1) Power supply. Single phase AC220V +/- 10% or AC110V+/-10%, or DC12V / 24V.

    2) Water. Distilled water, or pure water, or tap water.

    3) KOH (potassium hydroxide) chemical powder. If the machine is shipped to you by sea, KOH chemical powder will be enclosed in the package.

    4) Alcohol. You can use laboratory alcohol, industrial alcohol, drinking alcohol, medical alcohol but alcohol concentration should be more than 75%.

    Except the above items, other are all enclosed in the machine package.

    We have demo video to teach you how to use the machine.

    Q. How to make electrolytic solution?

    A: Mix 300g potassium hydroxide in 1500ml water. Stir them until it is dissolved completely.

    We have demo video to teach you how to make solution.

    Q. What is the  normal AMP value?

    A: When the machine works, the normal AMP value is approximately 10A.

    If you find the value is lower than 10A, please check if the solution strength is enough according to 300g KOH : 1500ml water.

    If solution strength is enough, please empty solution tank and wash it by clean water completely. Then fill new solution in it.

    Q. Besides KOH (potassium hydroxide), may I use other chemical powder or salt?

    A: Absolutely NO!!!  Just KOH (potassium hydroxide) is allowed for the machine. Any other chemical powder or salt will destroy the machine.

    Q. When I receive the machine, I find it does not work, what’s wrong with it?

    A: 1) Please check if you have added chemical powder as required.

    2) What kind of chemical powder are you using? Is it KOH (potassium hydroxide)?

    3) Please check if electrolytic solution strength is enough as per 300g KOH : 1500ml water.

    Q. When liquid level declines, should I make new solution to replenish in the machine?

    A: No need. When liquid level declines, you just need to replenish water in machine until level up to Normal Water Line. No need to add chemical powder.

    Only for the 1st time to use the machine, or change new electrolytic solution, potassium hydroxide must be added.

    Q. What cause red or yellow flame color? And how to solve this problem?


    Reason 1: Exceeded electrolytic solution is filled in.

    Solution: You just need to pour extra electrolytic solution and make it in the range of normal water line, the problem will be solved.

    Reason 2: Water vapor gas hose.

    Solution: Remove water vapor from gas hose, or change a new gas hose.

    Reason 3: Dirty nozzle.

    Solution: Stab the hole of nozzle with needle and clean out dirty things.

    Reason 4: Dirty electrolytic cells.

    Solution: Empty the cells completely, then clean the cells with clean water for several times until it is clean. Then make new electrolytic solution with 300g KOH and 1500ml water and fill in machine cells.

    Q: What cause little gas output? And how to solve this problem?


    Reason 1: Low ampere value.

    Solution: Make new electrolytic solution with correct proportion of 300g KOH to 1500ml water. Then confirm every cell’s ampere value is normal 12A.

    Reason 2: Gas Leakage.

    Solution: Turn off flame torch and power on machine, then smear soap liquid on every connection parts to find out leakage point, then maintain it.

    Reason 3: Jammed gas flow

    Solution: Loosen the small pipe inside the filter cup. Maintain the flashback arrestor or flame torch.

    Q: What cause flashback? And how to solve this problem?


    Reason 1: Gas leakage.

    Solution: Turn off flame torch, power on the machine, smear soap liquid on every connecting joints of the machine to find leakage point and maintain it.

    Reason 2: Flashback arrestor is broken down.

    Solution: Maintain flashback arrestor or change a new one.

    Q. May I purchase it through Aliexpress?

    A: Sure. Link to our Aliexpress tore as below:

    • Contact Us

    If you are interested in this machine, welcome to send inquiry to us.

    Or contact us for more details of the machine.

    contact us
