CNC Router Machine With 2 Heads And Competitive Price BT-1325W- 2S

Short Description:

  • Min.Order Quantity: 1 Set
  • Port: Qingdao port or any other Chinese ports
  • Payment Terms: L/C, T/T, Alibaba Trade Assurance, PayPal, Western Union, MoneyGram
  • Product Detail

    Product Tags

    CNC or Not:
    Place of Origin:
    Shandong, China (Mainland)
    Brand Name:
    BEST or OEM
    Model Number:
    2 Years
    After-sales Service Provided:
    Overseas third-party support available
    CNC Router Machine With 2 Heads And Competitive Price
    Model No.:
    X-Y-Z Working Size:
    Max. Working Speed:
    Control System:
    Processing Precision:
    Reposition Precision:
    Worktable Structure:
    T-slip type, fix material by clamps
    Transmission System:
    Rack and pinion, gear driven
    Rated Voltage:

    Packaging & Delivery

    Packaging Details
    Free-fumigation wooden case
    Delivery Time
    7days after receiving deposit

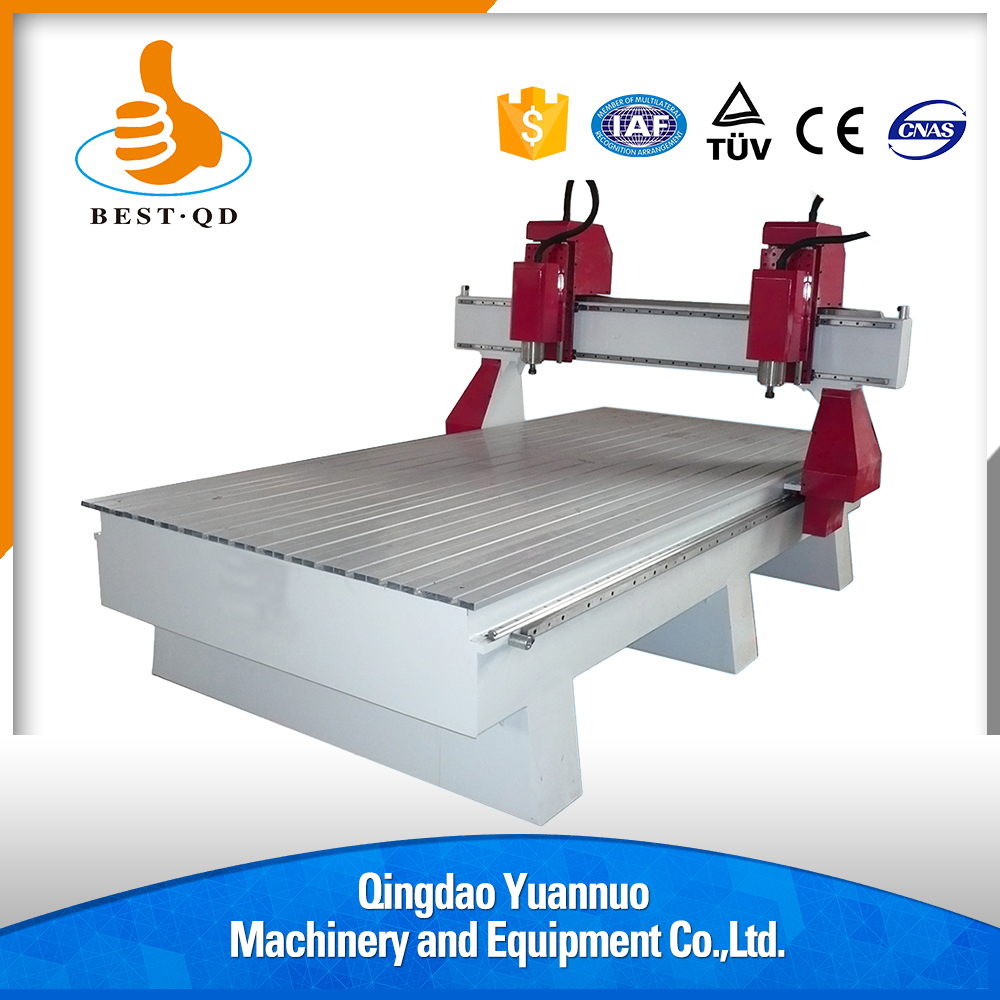

    CNC Router Machine With 2 Heads And Competitive Price BT-1325W-2S

    Dear Customer:

         Welcome to our website and hope our products will make you satisfied. And we own our own factory. So We can produce the products according to customer requirements . Survive by quality, profit by management, development by creation.

        Let’s introduce this product to you as below:


    Model No. BT-1325WF-2S
    X, Y Working Area 1300x2500mm
    Z Working Size 200mm
    Processing Precision ±0.05mm
    Reposition Precision ±0.02mm
    Worktable Structure T-slip type, fix material by clamps
    Transmission System Rack and pinion, gear driven
    Max. Traveling Speed >15,000mm/min
    Max. Working Speed >10,000mm/min
    Spindle Motor 3kW, Chinese famous brand high quality spindle motor, cooled by water
    Spindle Numbers 2 individual spindles
    Driving Motors Stepper
    Power Supply AC380V/50Hz
    Operation Command G code
    Control System Ncstudio
    Weight 1200kg

    1) The bed lathe is welded with thick cast steel, and quenched before shaping to eliminate innerstress, so the working table is quite strong, stable and durable.

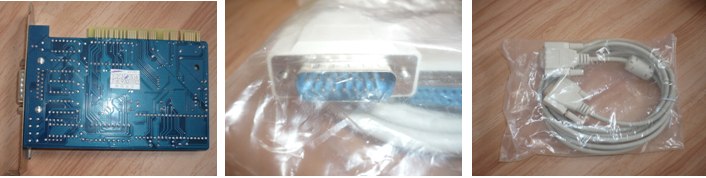

    2) Ncstudio control system with individual control box, data collected and transferred by PCI card.

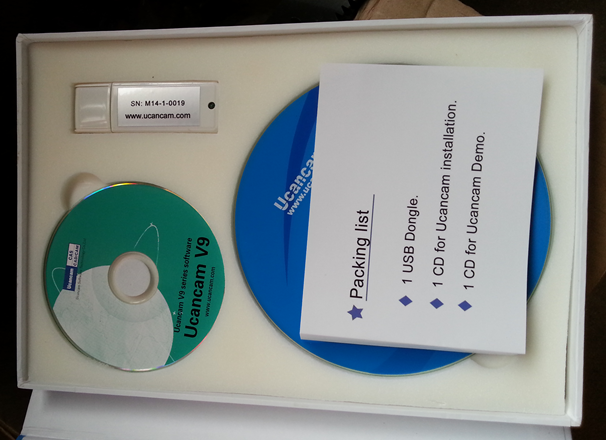

    3) The machine is equipped with Ucancam V9 software in English, including 1 book of User’s Manual in English, 1 set-up CD, 1 teaching CD, 1pc of USB Key (dangle). It is compatible with other CAD/CAM software such as Type3 / Artcam / Castmate etc.

    4)  Hiwin linear guideway made in Taiwan, 4pcs of sliders in double rows, support heavy-duty working, strong and durable.

    5) Tilt rack and pinion, gear driven, more accurate and lower noise than straight type.

    6) 5.5kW Chinese spindle motor cooled by water.

    7) Powerful vacuum dust collecting system, keep clear working surrounding and extend machine working life efficiently.

    8) Vacuum worktable, fix material automatically, more convenient and higher efficient.

    9) Optional items as below: DSP control system, Servo system, air-cooling spindle motor, multi heads.

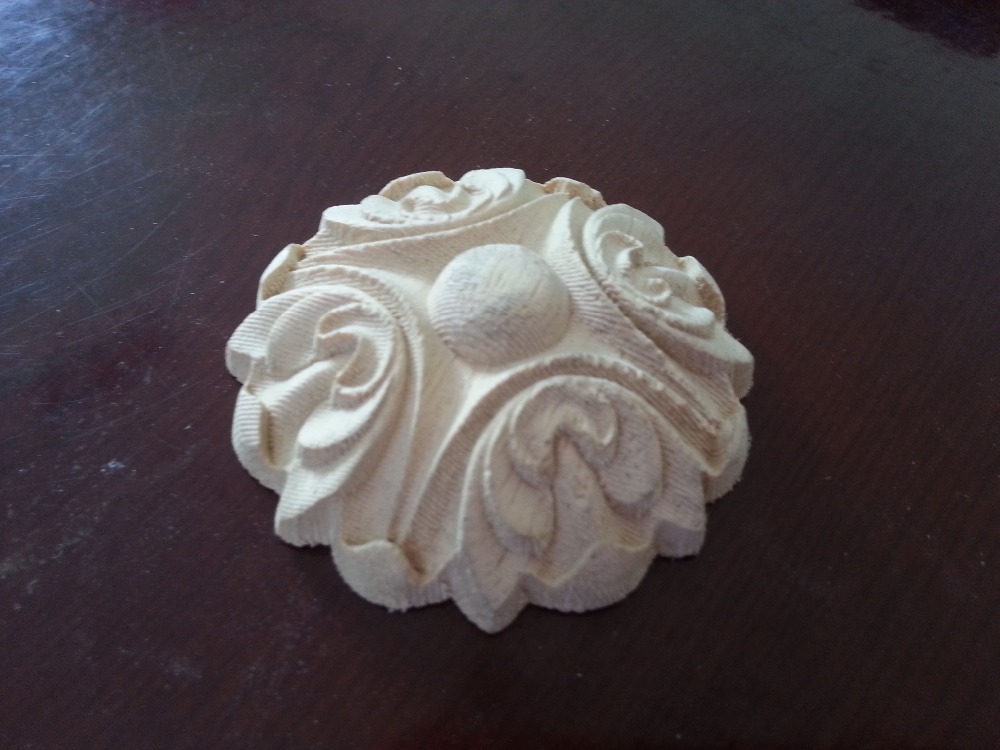

    (1).Woodworking industry, such as cutting and engraving door, window, furnitures, instruments etc.
    (2).Advertisement,construction moulds and other moulds making, arts and crafts making industry, such as cutting and engraving PVC sheet, hard plastic, acrylic, organic glass, resin, MDF sheet etc.
    (3).Engraving metal such as iron, copper, aluminium etc.

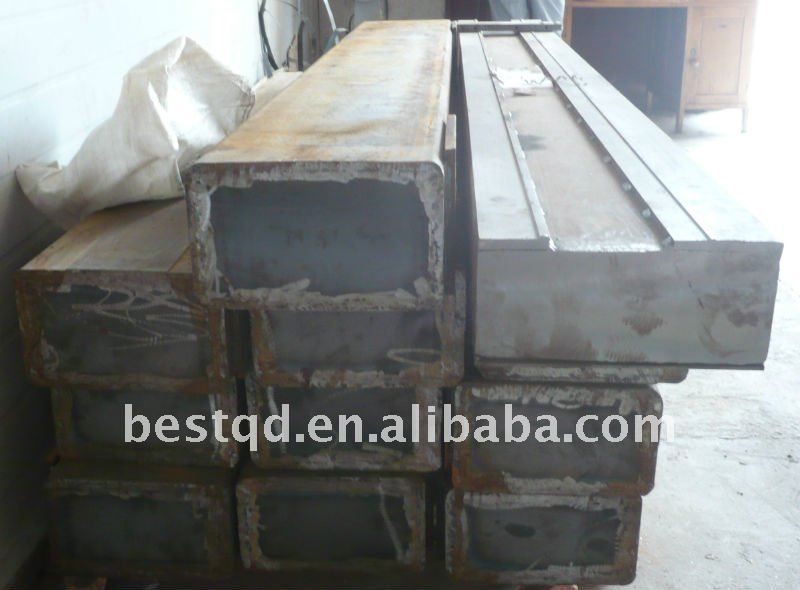

    1. The gantry is made of 8mm thick cast steel tube, more strong to make sure high precision of machine.

    2. Trapezoid-shaped bed lathe structure, more stable and durable than common straight type.

    3. Tilt rack and pinion, lower noise but higher precision than common straight type.

    4. Packed in free-fumigation wooden case, more safe and environmental protection.


    Why Choose Us ?

    1. We have the rich experience Research & Development group and exquisite technology to custom-made a suitable product for customers.

    2. Our company sincerely welcomes cooperation with friends at both home and abroad to make our mutual bright future.

    3. Our prices compare favorably with those offered by other manufacturers, either in china or anywhere else, if you contact us you will see our prices are most competitive.

    4. “Regarding quality first and service utmost ” is the company’s guideline.
