BT-500DP Small Size Diamond Edge Polishing Machine

Short Description:


  • Min.Order Quantity: 1 Set
  • Port: Qingdao port or any other Chinese ports
  • Payment Terms: L/C, T/T, Alibaba Trade Assurance, PayPal, Western Union, MoneyGram
  • Model No. : BT-500DP
  • FOB Qingdao Price: USD4500/set negotiable according to order quantity
  • Power Supply: Single Phase AC220V+/-10%, 5Amp, 60Hz
  • Working Size (LxW): 460x580mm
  • Guide Way Overall Length: 1040mm
  • Workpiece Max. Size : 610x2440x20mm
  • Spindle Rotation Speed: 20,000rpm
  • Lead Time: 7 days dating from deposit is received
  • Origin: Qingdao, China
  • H.S. Code: 84659300.00
  • Application: Polish rough edge of hard plastic, including but not limited to Acrylic, Perspex, PETG, PVC, PC etc
  • Available Models: BT-500DP, BT-1200NDP, BT-1500DP, BT-1350DP, BT-1600DP, BT-1600DP-S, BT-2200DP-S
  • Product Detail

    Product Tags

    • Product Description

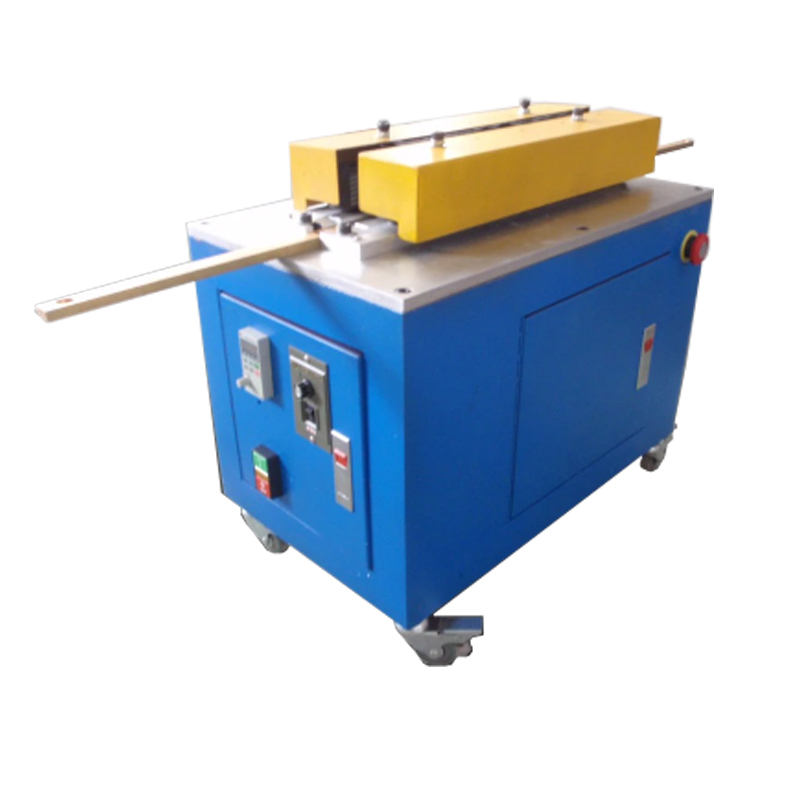

    BT-500DP (2) BT-500DP

    • Specification Specification

    Model No. BT-500DP
    Working Area (LxW)
    460x580mm
    Guide Way Overall Length
    1040mm
    Workpiece Max. Size (LxWxT) 610x2440x20mm
    High Frequency Spindle Rotation Speed
    20,000rpm
    DC Speed-regulated Motor Power
    1500W
    High Precision Automatic Elastic Fixture
    Standard
    Feeding Speed (adjustable)
    0-3000mm/min
    Feeding Motor Power
    150W
    Power Supply
    AC220V 60Hz single phase 5Amp
    Cutting Mode Material feeding
    Machine Dimension (L*W*H) 560x330x550mm
    Gross Weight (including free-fumigation wooden case) 78kg
    Wooden Crate Dimension (LxWxH) 74x51x81cm /0.31CBM, 95kg.
    Certificate CE, ISO9001, ISO14001

    Application

    In traditional plexiglass products processing, the workers always use bench polisher or flame polisher to polish the plexiglass surface, whose disadvantage is low efficiency, high labor cost, large wastage but the polishing finish is not perfect.

    The Diamond Edge Polishing Machine, adopts Monocrystal and PCD tool to cut plexiglass finely so to get mirror finish surface. After polished, the products are high transparent, non discoloring, , especially perfect as light guide plate.

    Before Polished.

    sample (before polished)

    After Polished.

    sample (after polished)

    •Technical Feature

     1) The Acrylic (Plexiglas) Diamond Edge Polisher removes all the sawtooth marks of the plexiglass with one pass

    and is edge bright.

    2) The single-piece or multi-piece workpiece can be automatically adjusted by the high-precision spring clamp

    pulley, and the high-flatness and brightness can be achieved by the special high-temperature spindle diamond

    polishing knife installed on a special 20000 rpm.

    3) The feed rate can be from 0-2000mm per minute via a variable speed DC motor.

    4) The pulley set can be easily opened to the left and right and is very safe to adjust or install the tool to enter, and

    achieve good protection.

    5) The entire equipment has been adjusted with high precision and achieved high precision polishing.

    ● Cutting Tools

    The machine is equipped with 1pc of rough diamond cutter and 1pc of refine diamond cutter.

    Cutters and cutter-holder

    The cutter disc and diamond cutters purchasing link to aliexpress.com

    https://www.aliexpress.com/store/product/Free-shipping-Diamond-Cutters-Combined-With-Cutter-Holder-for-Diamond-Edge-Polishing-Machine/904631_32947371576.html?spm=2114.12010612.8148356.1.2a7d7a563LvdFa

    Lead Time

    7 days dating from payment is received.

    Warranty

    2 years dating from you receiving the machine.

    During warranty period, if some part is broken due to manufacturing defect, we will send you new part to replace freely.

    Payment Terms

    L/C, T/T, Western Union, MoneyGram, PayPal, Alibaba Trade Assurance, Credit Card through aliexpress etc.

    Packing Information

    1 set / Free-fumigation wooden case.

    Carton dimension (L*W*H):74*51*81CM / 0.31CBM, 95kg.

     Suggested Shipping Mode

    By sea or by air or by express courier.

    If you are interested in this machine, please send inquiry to us through leaving message here, or by email, or chat through skype/whatsapp/wechat/qq etc. Then we will check and advise you which shipping mode is the best for you according to your country and if you need the machine urgently.

    • FAQ (Frequently Asked Questions)

    Q. What should we prepare for the machine?

    A: 1) Power supply. Single phase AC220V.

    2) Water. For cooling system.

    Q. What is consumable material of the machine?

    A: Just cutters are consumable part of the machine.

    Q. What is cutters’ working life?

    A. In normal condition, the cutters working life is 8hour/day*30 days / month * 2.5 months=600 hours.

    Q. When the cutters become dull, should we abandon them directly?

    A: No. They can be resharpened then be used again.

    You buy machine from us, we resharpen cutters for you during the whole lifespan of the cutters freely.
