High Configuration 1300x2500mm CNC Router On Sale At Surprising Price 3 Years Warranty

Short Description:


  • Model No. FOB Qingdao: BT-1325W
  • FOB Qingao Price: USD3400/set
  • Working Area: 1300x2500mm
  • Power Supply: Single Phase AC220V+/-10%, or 3 phase AC380V+/-10%
  • Spindle: 3.2kW cooled by water
  • Transmission System: Hiwin square linear guideway
  • Application: Cutting and engraving non-metal material professionally
  • Product Detail

    Product Tags

    High Configuration 1300x2500mm CNC Router On Sale At Surprising Price 3 YearsWarranty

    • Product Description

    CNC Router 1

    in workroom 1


     Technical Feature:

    1) The bed lathe is welded with thick cast steel, and quenched before shaping to eliminate innerstress, so the working table is quite strong, stable and durable.

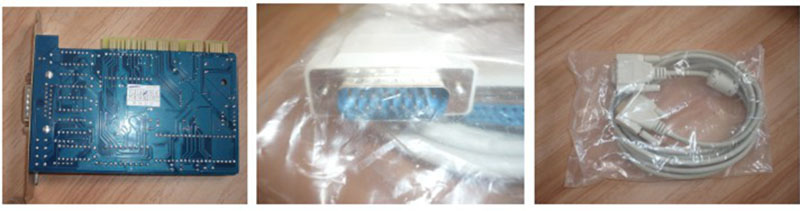

    2) Ncstudio control system with individual control box, data collected and transferred by PCI card.

    NC studio

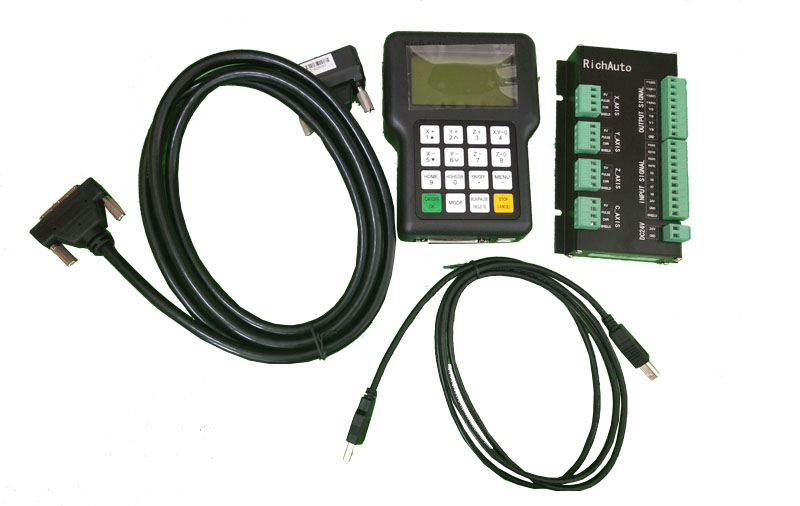

    DSP system with hand controller is optional.

    DSP
    3) The machine is equipped with Ucancam V9 software in English, including 1 book of User’s Manual in English, 1 set-up CD, 1 teaching CD, 1pc of USB Key (dangle). It is compatible with other CAD/CAM software such as Type3 / Artcam / Castmate etc.

    Ucancam V9

    4) Hiwin linear guideway made in Taiwan, 4pcs of sliders in double rows, support heavy-duty working, strong and durable.

    5) Tilt rack and pinion, gear driven, more accurate and lower noise than straight type.

    6) 3.2W Chinese spindle motor cooled by water.

    7) Powerful vacuum dust collecting system is optional, which can keep clear working surrounding and extend machine working life efficiently.
    8) Aluminium T-slip work table, smart and convenient to fix different size material.

    Automatic vacuum-sucking worktable is optional.

    linear guideway vacuum worktable



    9) Other optional items as below: Servo system, air-cooling spindle motor, multi heads.

    • Specification Specification

    Model No. BT-1325W
    X, Y working area 1300x2500mm
    Z working area 200mm
    Working accuracy +/-0.02mm
    Repositioning accuracy +/-0.01mm
    Guide way (X, Y, Z) D 20mm square linear guideway, Hiwin brand made in Taiwan.
    Transmission system (X, Y, Z) X, Y axis equipped with tilt-teeth rack and pinion, driven by gear.Z axis equipped with ball screw.
    Max. travelling speed >15,000mm/min
    Max. working speed >10,000mm/min
    Spindle motor 3.2kW, made in China, cooled by water.
    Driven motors Stepper motors
    Power supply Single phase AC220V, or 3 phase AC380V
    Command G-code*,u00* ,mmg *, plt
    Software compatibility Type3,  Artcam, Castmate, Ucancam V9 etc
    Control system  NC studio (DSP system with hand controller is optional)
    Dimension (L*W*H)  323*187*170cm, 10.27CBM
    Weight 1000kg

    Application

    Engraving and cutting almost all of non-metal material professionally, including but not limited to wood (timber, MDF, plywood etc), Acrylic, Plexiglass, PVC, ABS, PC, bamboo etc.

    Lead Time

    10 days dating from deposit is received.

    Warranty

    3 years dating from you receiving the machine.

    During warranty period, if some part is broken due to manufacturing defect, we will send you new part to replace freely.

    Payment Terms

    L/C, T/T, Western Union, Alibaba Trade Assurance etc.

    Packing Information

    Free-fumigation wooden crate.

    Carton dimension (L*W*H): 323*187*170cm /10.27CBM, 1000kg.

    • FAQ (Frequently Asked Questions)

    Q. Do you sell Endmill Cutters for CNC Router?

    A: Sure. Welcome to purchase through our aliexpress store. Link as below:

    https://hydrogentime.aliexpress.com/store/group/Endmill-Cutter/904631_210697318.html?spm=2114.12010608.0.0.433b508571Ia1D

    Q. Do you sell Endmill Cutters for CNC Router?

    A: Sure. Welcome to purchase through our aliexpress store, link as below:

    https://hydrogentime.aliexpress.com/store/group/Endmill-Cutter/904631_210697318.html?spm=2114.12010608.0.0.79ae50850Xkrj1

    • Contact Us

    If you are interested in this machine, welcome to send inquiry to us.

    Or contact us for more details of the machine.
