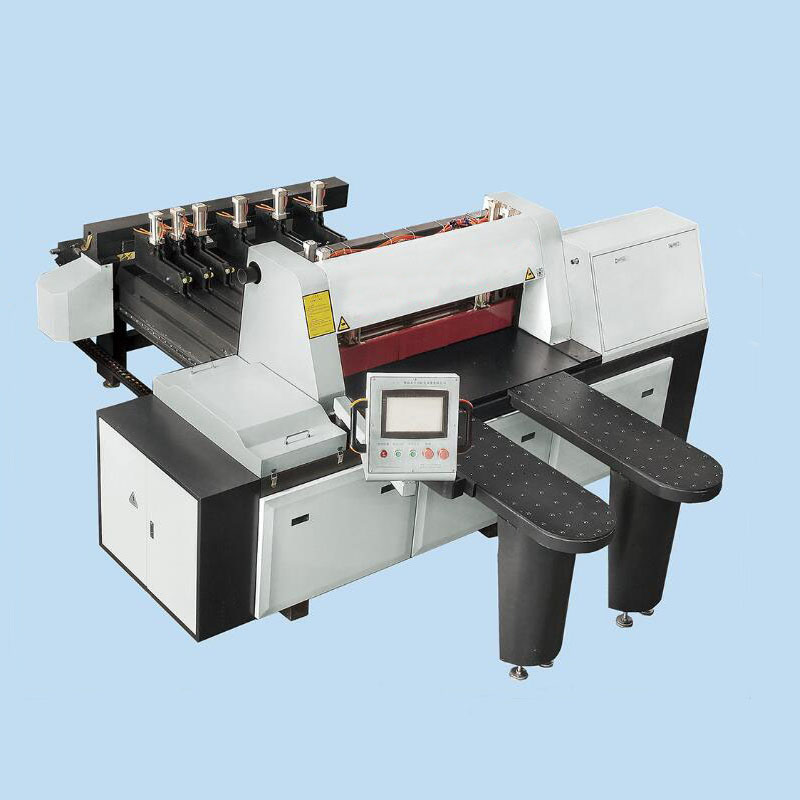

Full Automatic 1300x2600mm CNC Saw Cutting Machine

Short Description:


  • Min.Order Quantity: 1 Set
  • Port: Qingdao port or any other Chinese ports
  • Payment Terms: L/C, T/T, Alibaba Trade Assurance, PayPal, Western Union, MoneyGram
  • Model No. : BT-1326SC
  • FOB Qingdao Price: USD21,500/set negotiable according to order quantity
  • Automation Degree: Full automatic, controlled by LS brand PLC control system with touch color screen
  • Max. Cutting Length: 2600mm
  • Max. Cutting Thickness: 60mm
  • Max. Cutting Width: 1300mm
  • Saw Driven Motror: 35N.m
  • Saw Rotation Speed: 0-4200RPM
  • Feeding Motor Power: 2.4KW
  • Spindle Motor Power: 11KW
  • Power Supply: 3 phase AC380V + N
  • Saw Diameter: 305-355mm
  • H.S. Code: 84659100.00
  • Application: Cutting non-metal material high efficiently, such as acrylic, wood etc.
  • Available Models: BT-1313SC, BT-1326SC
  • Product Detail

    Product Tags

    Product Description

    1313

    • Specification Specification

    Model No.  BT-1326SC
    Max. Cutting Length
    2600mm
    Max. Cutting Thickness
    60mm
    Max. Cutting Width 1300mm
    Saw Driven Motor 35N.m
    Saw Rotation Speed
    0-4200RPM
    Feeding Motor Power
    2.4KW
    Spindle Motor Power
    11KW
    Working Pressure ≥5.7MPa
    Power Supply
    3 phase AC380V+N
    Power Cord ≥4mm
    Diameter Of Saw Hole 30mm
    Saw Moving Forward Speed 0-30m/min
    Saw Moving Backward Speed 0-30m/min
    Diameter Of Saw 305-355
    Dimension Of Machine (L*W*H) 5280*3310*1550mm
    Machine Weight (kg) 2500kg

    Application

    The machine is applied to cutting non-metal material, including but not limited to wood, acrylic, LGP (Light Guide Plate) and other hard plastic plate

    etc.



    •Technical Feature

    1) The main body is made of high quality steel and profile welded.

    2) High precision linear guide for track.

    3) Adopt electro-mechanical integration design, configure imported PLC, safe and stable.

    4) Key dust cover to reduce air pollution in the environment.

    5) Adjustable sawing speed, suitable for sawing requirements of different materials.

    6) After the sawing is completed, the material is automatically pushed out, so that the acrylic is in and out.

    7) The width of the sawing plate can be set, and the automatic returning process after sawing is convenient and quick.



    Lead Time

    Normally 10 days dating from deposit is received.

    Warranty

    2 years dating from you receiving the machine.

    During warranty period, if some part is broken due to manufacturing defect, we will send you new part to replace freely.

    Payment Terms

    L/C, T/T, Western Union, MoneyGram, PayPal, Alibaba Trade Assurance etc.

    Packing Information

    Free-fumigation wooden crate.

     Suggested Shipping Mode

    By sea.

    If you are interested in this machine, please send inquiry to us through leaving message here, or by email, or chat through skype /whatsapp /wechat/ qq etc. Then we will check and advise you which shipping mode is the best for you according to your country and if you need the machine urgently.

    • FAQ (Frequently Asked Questions)

    Q. What is consumable material of the machine?

    A: Saw blade.

    • Contact Us

    If you are interested in this machine, welcome to send inquiry to us.

    Or contact us for more details of the machine.
