63-160mm Manual Plastic Tube Fusion Welder With 4 Fixture Clamps

Short Description:


  • Min.Order Quantity: 1 Set
  • Port: Qingdao port or any other Chinese ports
  • Payment Terms: L/C, T/T, Alibaba Trade Assurance, PayPal, Western Union, MoneyGram
  • Model No. : BT63-160X4R
  • FOB Qingdao Price: USD340/set negotiable according to order quantity
  • Power Supply: Single phase AC220V+/-10% or AC110V+/-10%
  • Applicable Material: To butt weld PE / PP / PB / PVDF / HDPE / PVC tube
  • Main Structure Made Of : Aluminum alloy casting, 45# steel
  • Welding level(Φ, mm): 2.48 inch (63mm), 2.95inch (75mm), 3.54inch (90), 4.33inch (110mm), 1.92inch (125mm), 5.51inch (140mm), 6.30inch (160mm)
  • Docking deviation: ≤0.012" (0.3mm)
  • Working Temperature: 0-300℃ adjustable
  • Origin: Qingdao, China
  • H.S. Code: 85152199.00
  • Weight: 105LB(45kg)
  • Package Dimension (): 65x42x45cm
  • Product Detail

    Product Tags

    Aliexpress purchasing link

    https://www.aliexpress.com/store/product/Free-Shipping-3-Years-Guaranty-AC220V-4-Rings-63-160mm-Fusion-Butt-Welding-Machine-For-Plastic/904631_32930628911.html?spm=2114.12010612.8148356.5.2b225f4ex69sg2

    • Product Description

    Manual Butt Fusion Welding Machine is suitable for welding PE / PP / PB / PVC / PVDF / HDPE pipes and fittings.

    The machine is made of Aluminum alloy casting and #45 steel with perfect design and steady struture, which will bring excellent operation experience both on the worksite and in the factory.

    The use of high quality Aluminum casting allows for lower weight without compromising strength and performance.

    63-160mm 4 3 butt welder 1

    6 7 8

    • Specification Specification

    Model No. BT63-160X4R
    The Machine Structure Made Of Aluminum alloy casting, #45 steel.
    Automatic Type Manual
    Fixture Clamps Quantity 4 clamps
    Applicable Material
    PE / PP / PB / PVC /PVDF / HDPE tube
    Tube Outer Diameter
    63-160mm (2.48inch-6.30inch) Dn63、Dn75、Dn90、Dn110、Dn125、Dn140、Dn160
    Docking Deviation
    <0.12inch (0.3mm)
    Power Of Heater
    1.2kW / Single Phase AC220V±10%
    Power Of Milling Cutter
    1.1kW / SinglePhase AC220V±10%
    Working Temperature
    120-300 ℃
    Temperature Deviation
    ±5℃
    Environment Temperature -5~40℃
    Time To Reach Soldering Temperature <20min
    Wooden Crate Dimension (LxWxH)  65x42x45cm, 0.12CBM
    Weight 105LB(45kg)

    Application

    The machine is applied to fusion butt weld PP /PE /PVC /PB / PVDF / HDPE tube.

    Tube outer diameter range is 63-160mm (2.48-6.3inch.)

     •Technical Feature

     1. Suitable for hot melt butt welding of PE /PP / PB /PVC /PVDF /HDPE etc plastic pipes of 63, 75, 90, 110, 125, 140 and 160 mm.

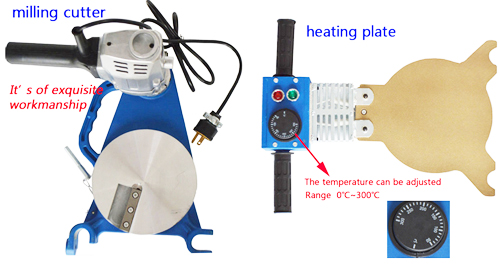

    2. It consists of a fixture frame, a heating plate, a milling machine (and its basket).

    3. Reasonable engineering mechanics design makes the welding work more convenient and flexible.

    4. If the ferrule gland is fixed on one side, the flipping structure makes the welding process shorter and more effective.

    5. The locking mechanism prevents external forces from being applied during welding.

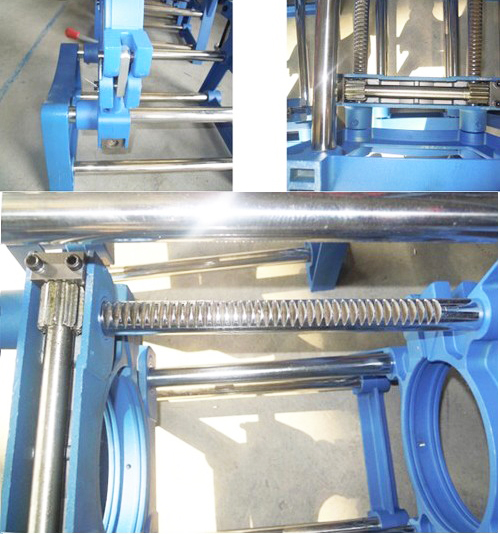

    6. The welding pressure is provided by the crank-driven mechanical mechanism, the transmission is smooth and easy to operate.

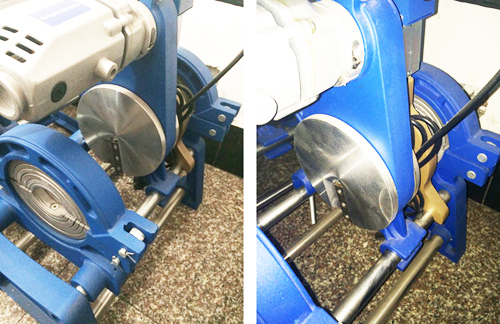

    7. The milling cutter is driven by motor.

    8. Excellent value for money.

    Lead Time

    10 days dating from payment is received.

    Warranty

    2 years dating from you receiving the machine.

    During warranty period, if some part is broken due to manufacturing defect, we will send you new part to replace freely.

    Payment Terms

    L/C, T/T, Western Union, MoneyGram, PayPal, Alibaba Trade Assurance, Credit Card through aliexpress etc.

    Packing Information

    1 set / Free-fumigation wooden crate.

    Carton dimension (L*W*H): 65*42*45cm /0.12CBM, 45kg.

    9

    Suggested Shipping Mode

    1-8sets we suggest shipping by express courier to door directly.

    9sets or more, we suggest shipping by air or by sea to port.

    • Contact Us

    If you are interested in this machine, welcome to send inquiry to us.

    Or contact us for more details of the machine.
